Combines a proprietary epoxy sealant with a durable composite overwrap to accomplish field repair of leaks to systems
with operating pressures up to 2500 psi.

The STOP IT^® PSX Repair System derives its high-pressure capabilities from the use of a field-mixed, two-part epoxy primary sealant and a fiberglass/urethane composite overwrap.

STOP IT^® PSX System can be installed by one person with no special tools or hot work, and provides for the completion of in-field repairs and return to service in a total of 4 hours.

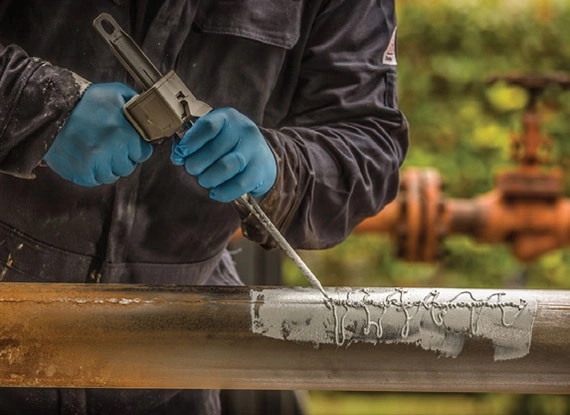

Following the cleaning and preparation of the surface, repairs involve the application of a thin film of epoxy sealant from the supplied cartridge gun. Precise mixing is accomplished with the use of a static mixer that is attached to the gun.  Once hardened (approximately 1 hr), the sealant is overwrapped with a fiberglass tape impregnated with water-activated polyurethane resins. Systems may be returned to service at pressures up to 2500 psi as soon as 4 hours following the application of the epoxy.
